Blackmagic micro converter bidirectional SDI/HDMI 3G converter
Various converters

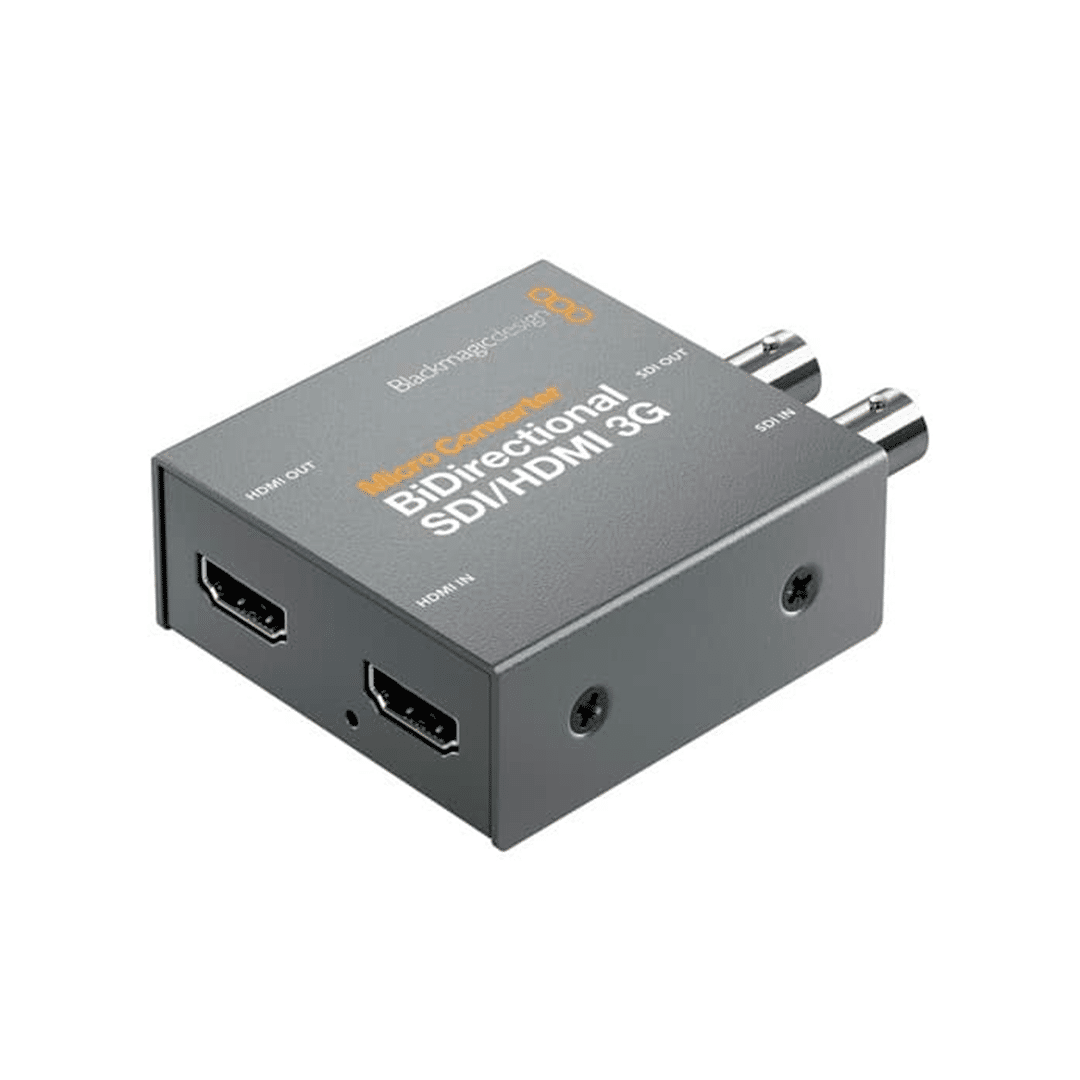

Blackmagic micro converter bidirectional SDI/HDMI 3G converter

This professional bi-directional converter is the most compact on the market. It allows you to process SDI sources to HDMI signals or vice versa, even in different formats.

Rental prices

  • 1 day
    21,00€
  • 2 days
    31,50€
  • 3 days
    42,00€
  • 4 days
    52,50€
  • 5 days
    63,00€
  • 6 days
    69,30€
  • 7 days
    75,60€

This professional bi-directional converter is the most compact on the market. It allows you to process SDI sources to HDMI signals or vice versa, even in different formats.

This professional bi-directional converter is the most compact on the market. It allows you to process SDI sources to HDMI signals or vice versa, even in different formats.

  • 1x Blackmagic micro converter bidirectional SDI/HDMI 3G converter

Connections

  • SDI Video Inputs: 1 x SD, HD or 3G SDI.
  • SDI Outputs: Automatic detection of HDMI sources.
  • HDMI Inputs: HDMI Type A.
  • HDMI Outputs: HDMI Type A.
  • Transmission speed: Automatic detection of SD/HD signals.
  • Updates, settings and power: USB Type-C.
  • Resync: Yes

Standards

  • SDI formats: NTSC 525i59.94, PAL 625i50
  • HD Formats:
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    • 1080PsF25, 1080PsF29.97, 1080PsF30
    • 1080i50, 1080i59.94, 1080i60
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
  • SDI transmission rates: SD/HD for SDI signals. Level selection (A/B) via the configuration program.
  • SDI color accuracy: 4:2:2
  • SDI color space: YUV
  • SDI Auto Adjust: Automatic detection of SD/HD/3G SDI signals.
  • Supported HDMI formats:
    • 525i29.97 NTSC, 625i50 PAL
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    • 1080i50, 1080i59.94, 1080i60.
  • HDMI Color Accuracy: 4:2:2
  • HDMI color space: YUV

For more information, you can consult the manufacturer’s official page.
